Description

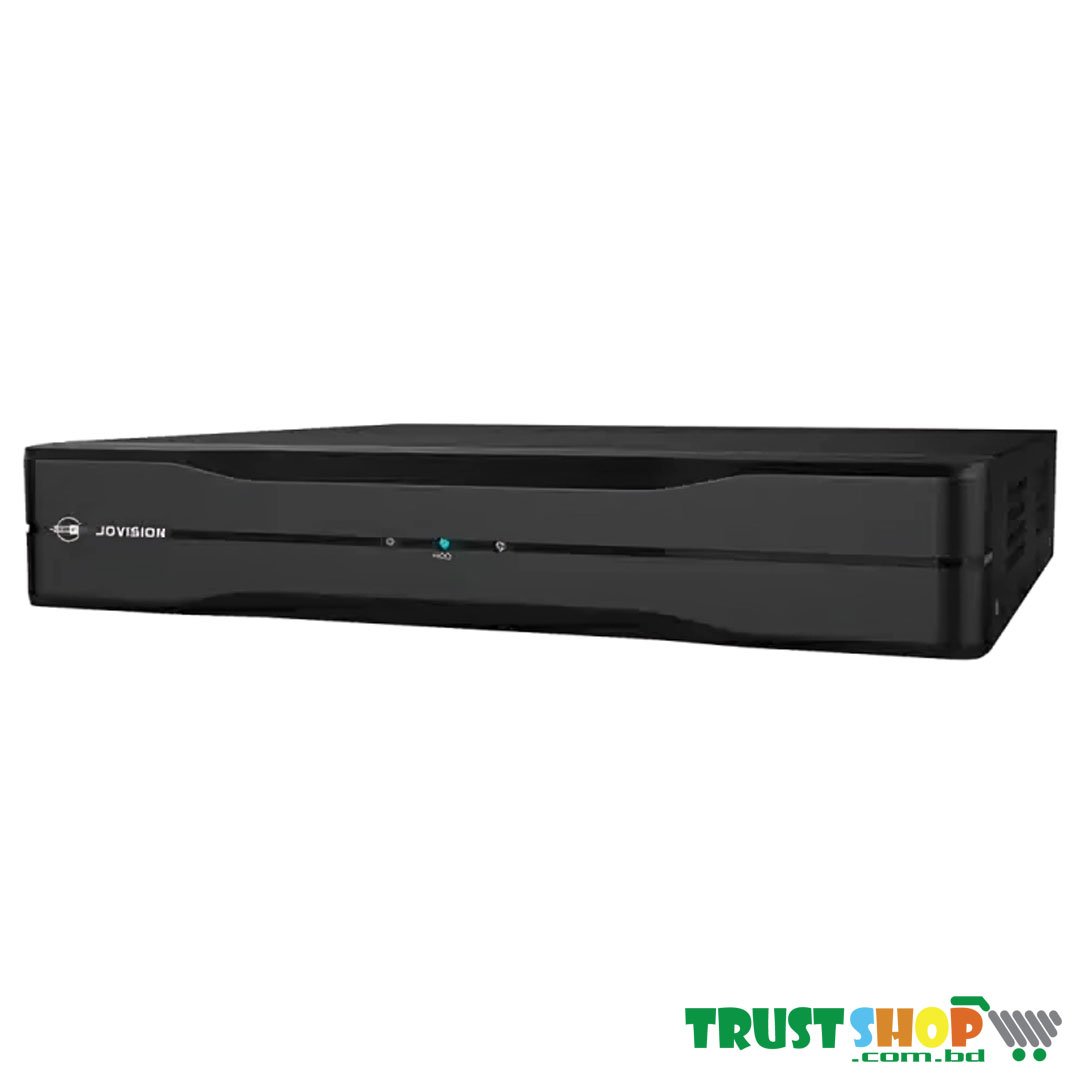

Specifications of the Jovision JVS-XD2604-FC10V 4 Channel XVR
| System | |
| Compression | H.265 |
| O/S | Embedded Linux O/S |
| Video and Audio | |
| Video Input | 4CH BNC + 12CH IPC |
| Preview Ability | 4x 5MN@20fps(4-in-1), 4x 4MN@20fps(4-in-1), 4x 1080N@25fps(4-in-1) |
| Coding Ability | 4x 5MN@12fps(4-in-1), 4x 4MN@12fps(4-in-1), 4x 1080N@15fps(4-in-1) |
| Decoding Ability | 4x 5MN@12fps(4-in-1), 4x 4MN@12fps(4-in-1), 4x 1080N@15fps(4-in-1) |
| Video Output | 1CH VGA, 1CH HDMI |
| Channel Mode | Support any channel mode combination (5MN analog + 5M IP) |
| Audio In & Out | 1/1, RCA 4CH coaxial audio input + 12 channels network audio |
| Video Standard | PAL/NTSC |
| Storage | |
| SATA | 1x SATA Interface |
| Capacity | Up to 8TB Max. |
| Backup Mode | USB |
| Playback and Backup | |
| Video Playback | Auto/ Timing/ Motion detection |
| Sync Playback | 4CH |
| Search Mode | Point-in-time search, calendar search, event search, channel search |
| Network | |
| Ethernet | 10 / 100 Mbps,1 RJ45 |
| Network Function | TCP/IP, DHCP, DDNS, NTP, SMTP |
| Interoperability | ONVIF Standard |
| Smart Phone | iPhone, Android |
| Hardware | |
| Network Interface | 1x RJ45 |
| USB Interface | 2x USB2.0 |
| PTZ Interface | Not Support |
| Controlling Device | Mouse |
| Alarm Input | Not Support |
| Alarm Output | Not Support |
| Special | |
| Multi-Screen Display | 1,4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
| Alarm Method | Email Alarm |
| Digital Zoom | Support |
| Two-Way Talk | Not Support |
| Alarm Snapshot | Support |
| Intelligent Analysis | Support Motion Detection |
| General | |
| Power Supply | DC12V /2A |
| Consumption | ≤ 15 W |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% Humidity |
| Dimensions | 250x223x42mm |
| Weight | 800g |
Features of the Jovision JVS-XD2604-FC10V 4 Channel XVR
The Jovision JVS-XD2604-FC10V 4 Channel XVR provides a range of encoding and decoding capabilities that make it a versatile choice for various applications. The multi-mode operation allows for different combinations, including analog, hybrid (mix of analog and IP), and IP camera setups. It supports up to 4 channels at 1080N@18fps or 1080P resolution, so you have the flexibility to capture high-quality video feeds.
This system is designed to operate in a wide temperature range from 0°C to +55°C and can function at humidity levels between 10% and 90% RH. It consumes less than 10 watts of power, making it an energy-efficient choice. With a single SATA interface supporting up to 6TB of storage, you can securely store an extensive amount of data.
Overall, the Jovision JVS-XD2604-FC10V 4 Channel XVR ensures steady and reliable operation for your surveillance needs.
What is the price of the Jovision JVS-XD2604-FC10V 4 Channel XVR in Bangladesh ?
The latest price of the Jovision JVS-XD2604-FC10V 4 Channel XVR is 5700 BDT. You can buy the Jovision JVS-XD2604-FC10V 4-Channel XVR from us at the best price. You can either buy it through our website or directly visit our office.
